Scangle SGT-B58II Windows Terminal type Tablet 11.6'
Scangle SGT-B58II Windows Terminal type Tablet 11.6'
Available in stock (1000)

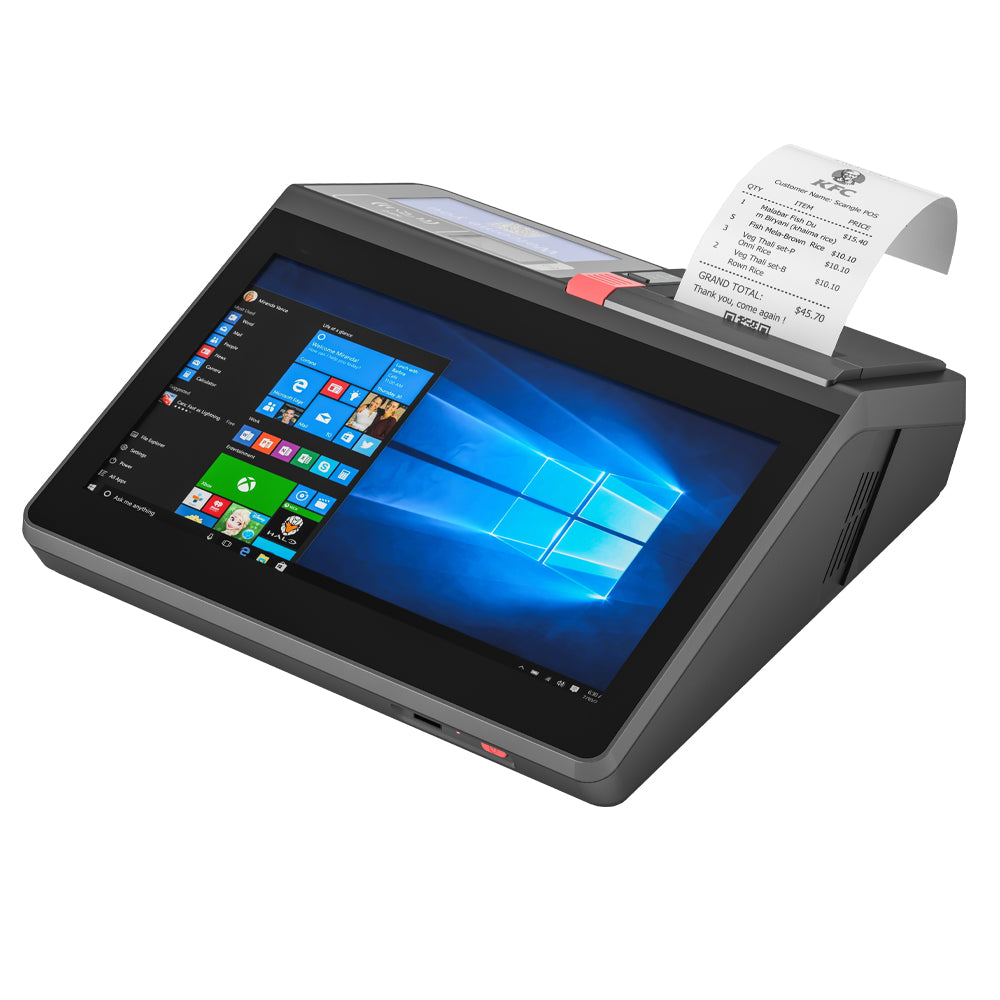

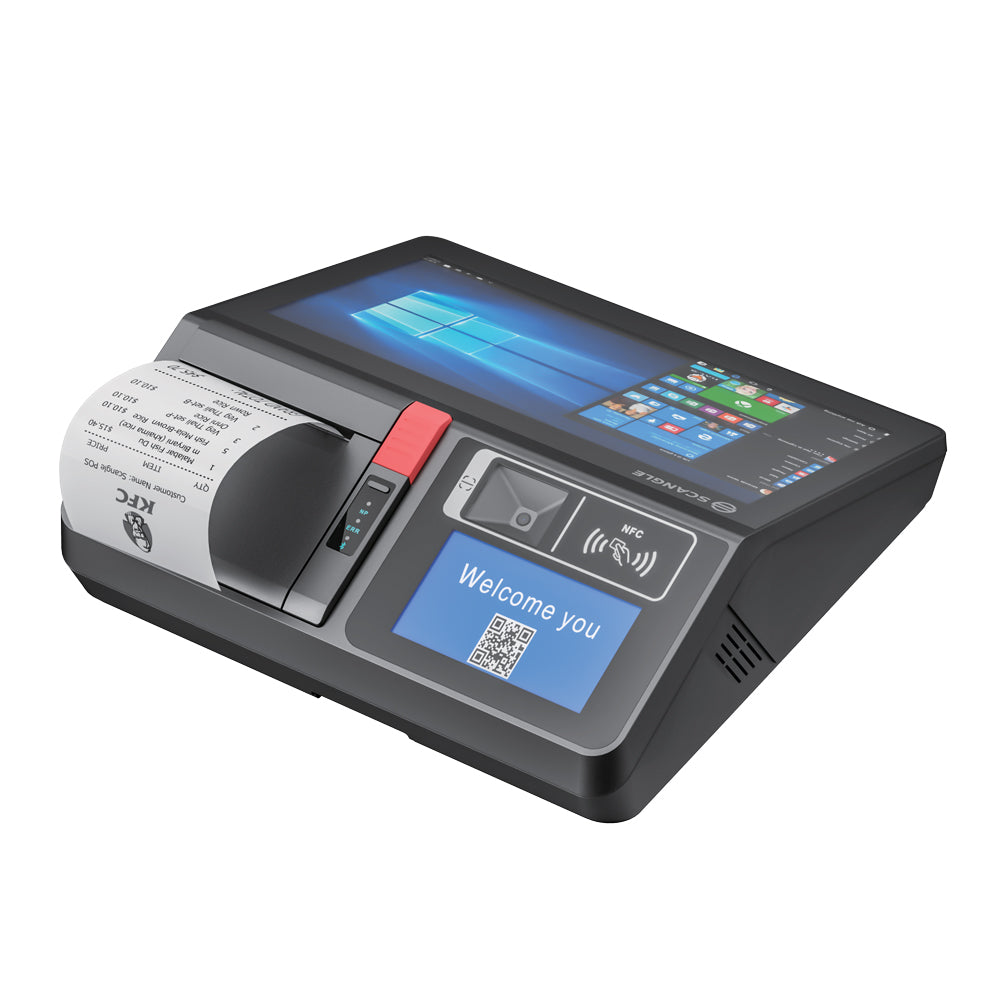

Scangle SGT-116W Touchscreen Point of Sale Terminal: Windows Power and Robust Design for Your Business
The ultimate POS terminal for the modern point of sale. The Scangle SGT-116W is an all-in-one point-of-sale terminal that redefines efficiency and durability. Featuring a rugged, multi-touch projected capacitive touchscreen (PCAP) and the power of the Windows operating system, this terminal is designed to operate seamlessly in the most demanding retail environments. It's the perfect investment for businesses seeking superior performance, unwavering reliability, and a professional aesthetic.
Ideal for:
- High Traffic Points of Sale: Its robustness and performance make it perfect for supermarkets, department stores and food establishments.
- Hospitality: Restaurants, bars and cafes that require equipment resistant to spills and splashes.
- Businesses with Windows-Specific Software: Compatible with most Windows-based point-of-sale management programs.
- Any environment that needs a durable and efficient POS solution.
Key Features and Detailed Technical Specifications:
- All-in-One and Elegant Design:
- All-in-One POS Terminal with an 11.6" screen (16:9 format).
- Solid construction for greater durability.
- High-Resistance PCAP Touch Panel:
- Equipped with a multi-touch projected capacitive touch panel (PCAP).
- Shock and scratch resistant.
- Brightness of 300 cd/m2.
- LCD screen options: 11.6" FHD (1920×1080 pixels) or 11.6" TFT (1366×768 pixels), both with LED backlighting.
- Powerful Processors and Windows Operating System:
- Equipped as standard with Intel Celeron J6412 processor (fanless).
- Processor options: N100, N95, N97, i3, i5, i7.
- Compatible with Windows 10/11 Pro/IoT Enterprise and Linux.
- The J6412 processor is energy efficient and its structure allows for effective heat dissipation.
- Flexible Memory (RAM) and Storage (SSD):
- Standard 4GB DDR4 RAM, with 8GB/16GB options.
- Standard 128GB NVMe M.2 2242 SSD (2 slots available), with 256GB/512GB options.
- Integrated 80mm Thermal Printer:
- Integrated 80mm thermal printer.
- Paper size: 80×60 mm or 58×60 mm rolls (for thermal receipts and thermal labels).
- Supports ESC/POS commands and OPOS Driver.
- Interface: USB port + RS232.
- Extensive Connectivity and Ports:
- USB ports: 3×USB 2.0 + 2×USB 3.0.
- Serial Ports: 1 serial port.
- LAN: Gigabit Ethernet x 1 (RJ-45).
- VGA: VGA DisplayPort x 1.
- Cash Drawer: 1 port (RJ-12 6 Pins) with 9-24V support.
- Audio: 1x Jack.
- Additional Options and Customization:
- Customer LCD display: Options of 4.3" or 11.6".
- VFD display.
- NFC card reader and/or QR code reader.
- iButton reader.
- MSR Reader.
- Camera (in the Android version).
- Certifications and Color:
- Certifications: CE, FCC, RCM, UKCA, UL.
- Color: Black.
- Power Supply: 1×DC, 12V, 5A.
The Scangle SGT-116W Touchscreen POS Terminal is an affordable system that offers excellent value, making it a cost-effective investment for developing long-lasting POS IT assets and infrastructure. Its robust design ensures consistent performance even in the most demanding environments.
